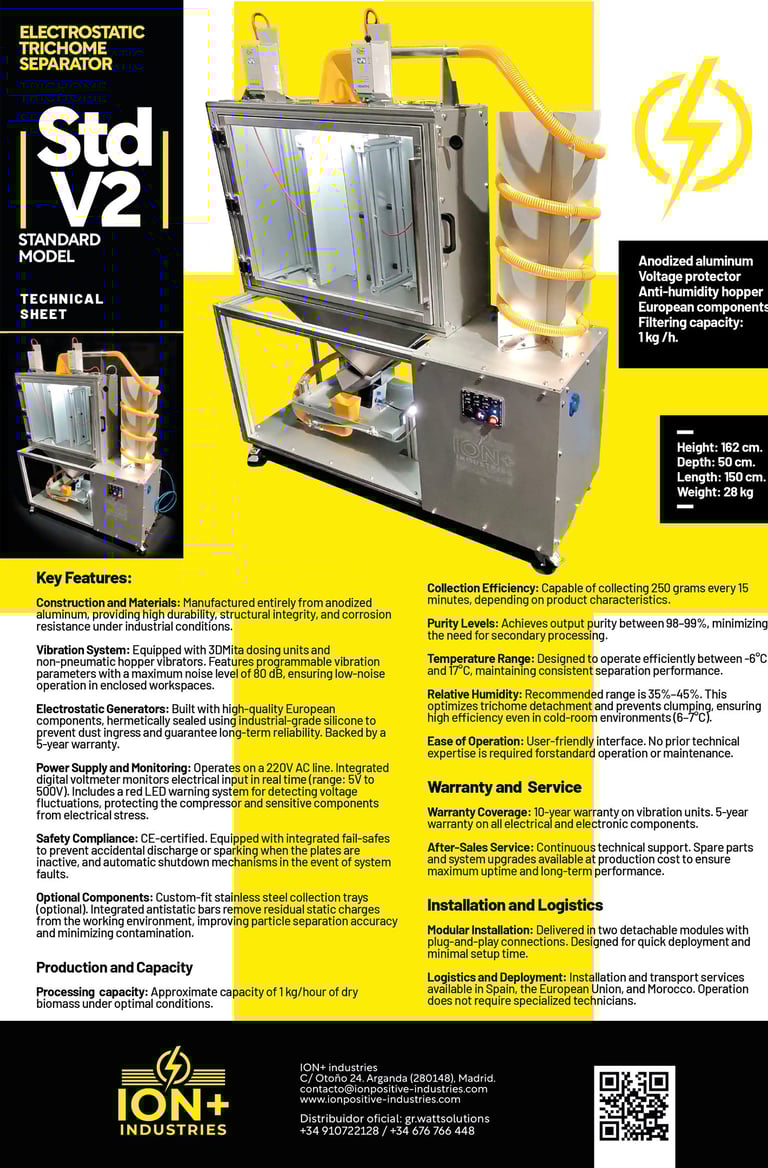

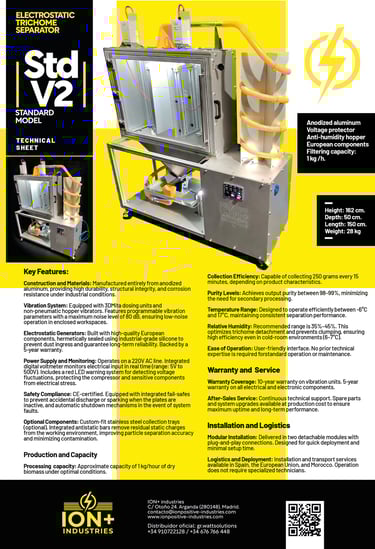

Key Features:

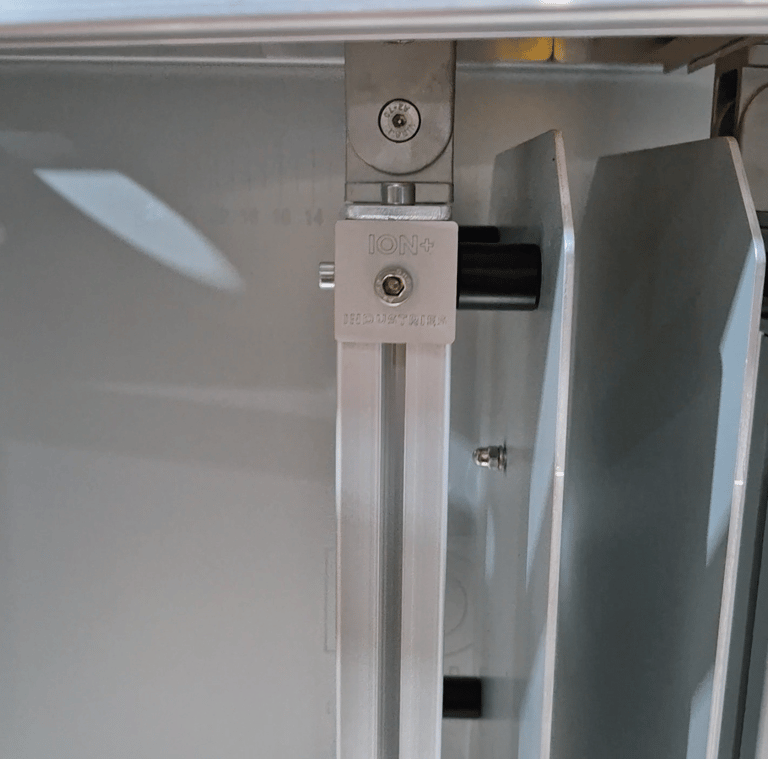

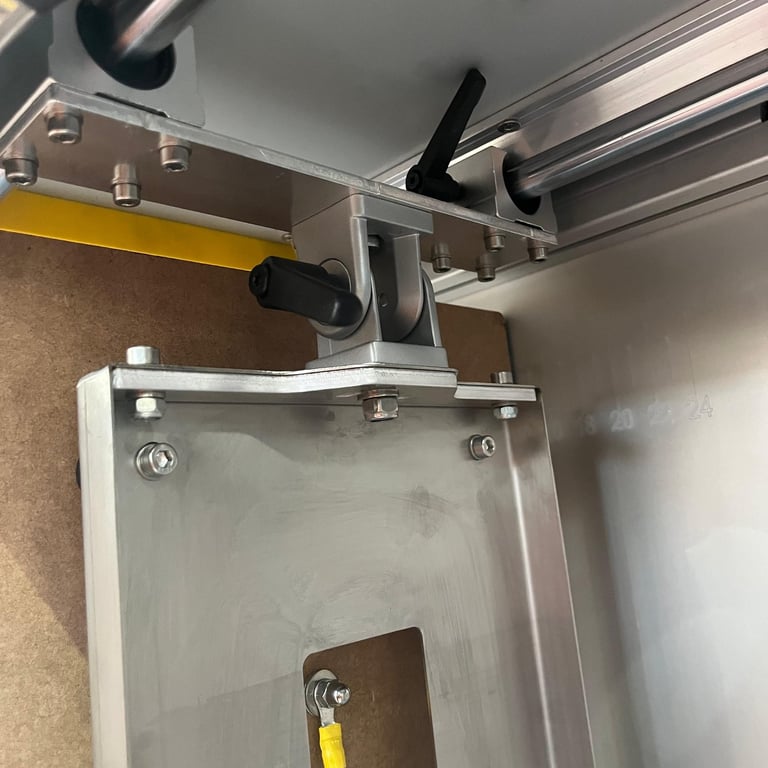

Construction and Materials: Manufactured entirely from anodized aluminum, providing high durability, structural integrity, and corrosion resistance under industrial conditions.

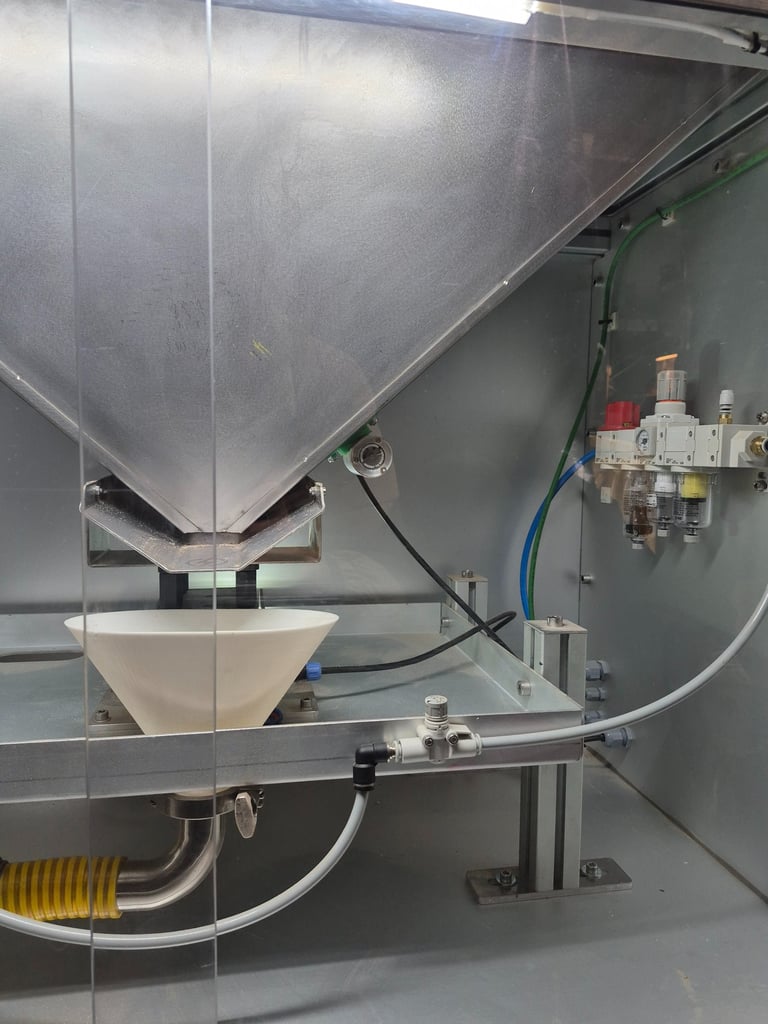

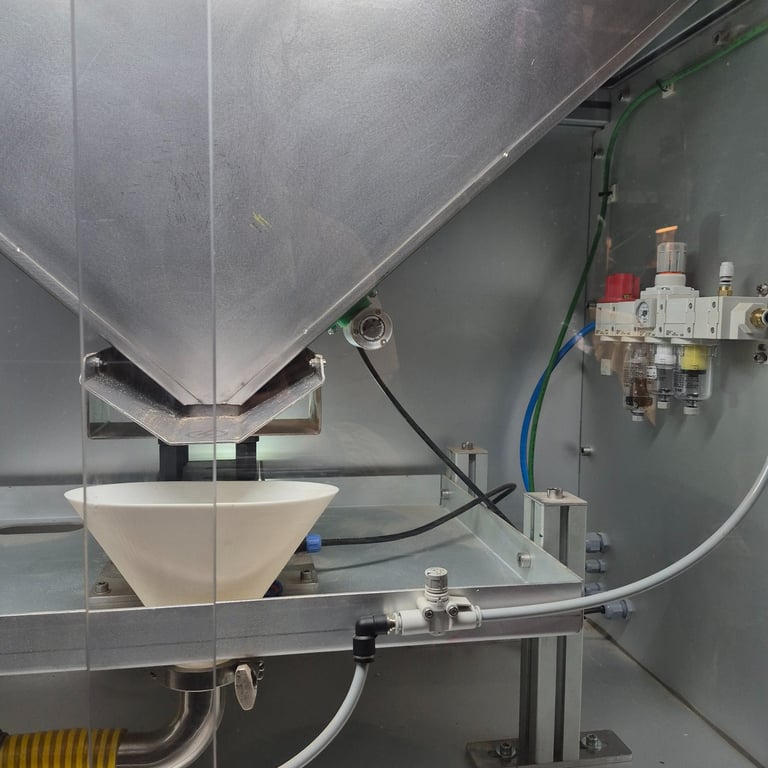

Vibration System: Equipped with 3DMita dosing units and non-pneumatic hopper vibrators. Features programmable vibration parameters with a maximum noise level of 80 dB, ensuring low-noise operation in enclosed workspaces.

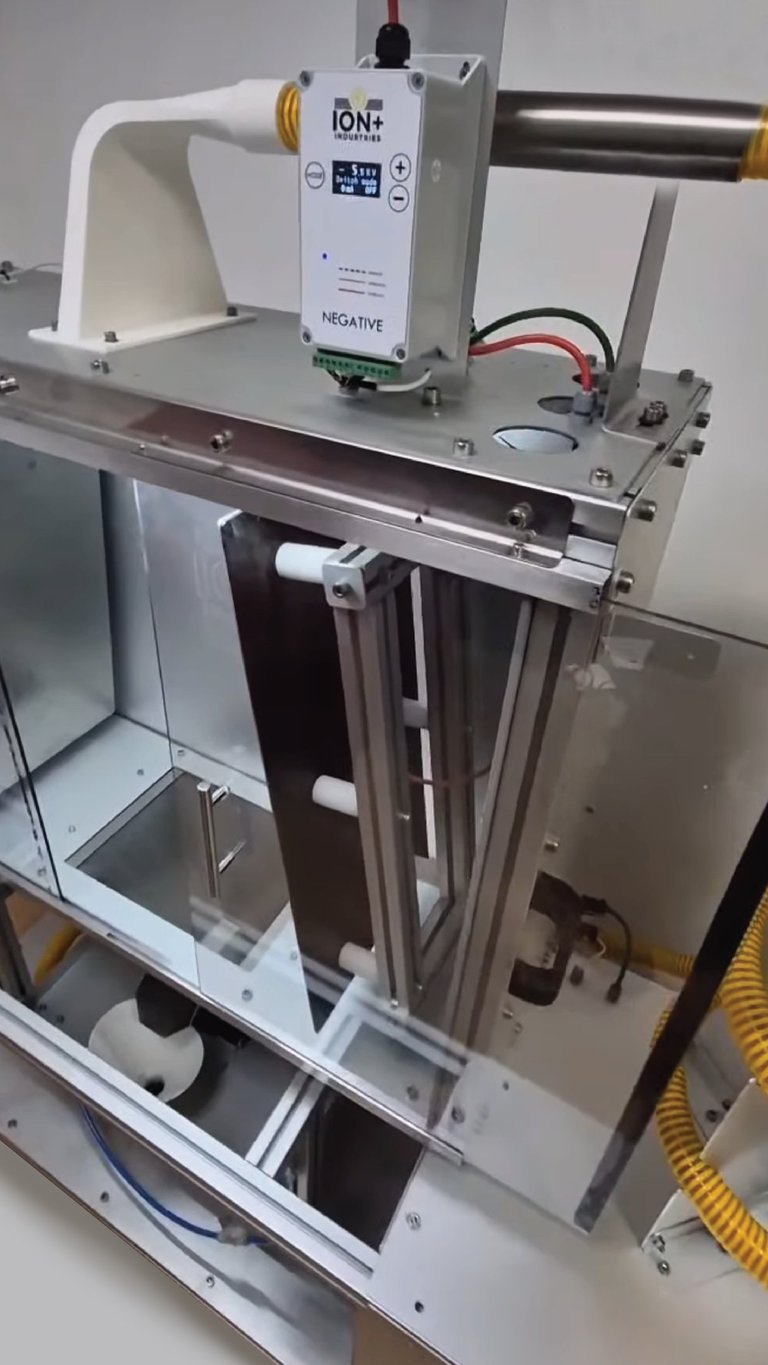

Electrostatic Generators: Built with high-quality European components, hermetically sealed using industrial-grade silicone to prevent dust ingress and guarantee long-term reliability. Backed by a 5-year warranty.

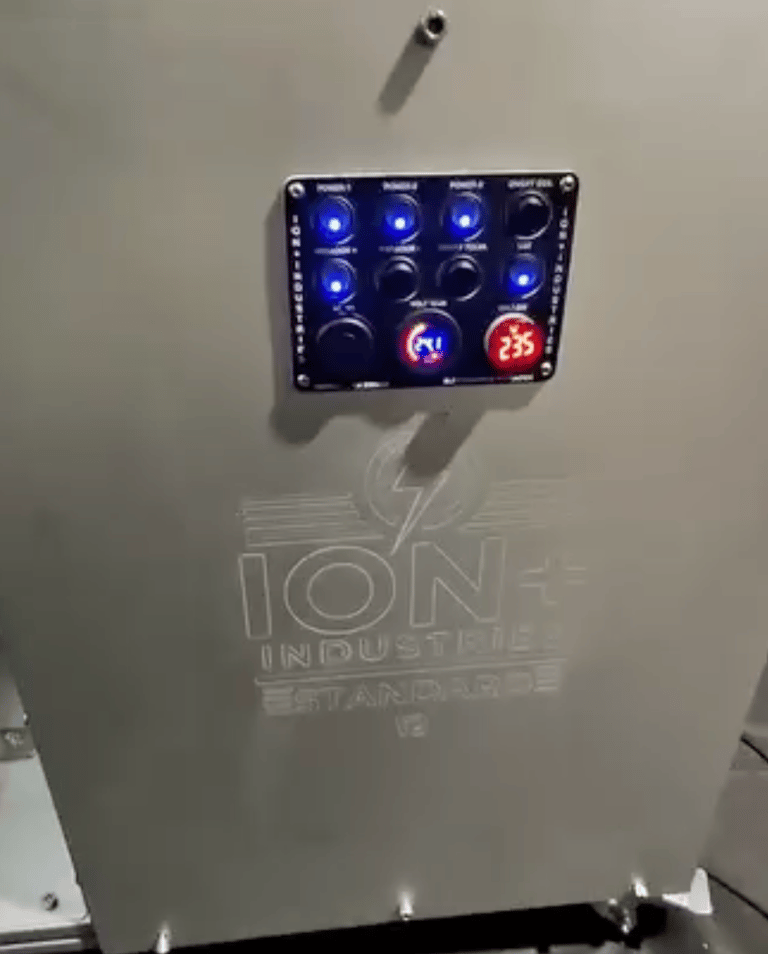

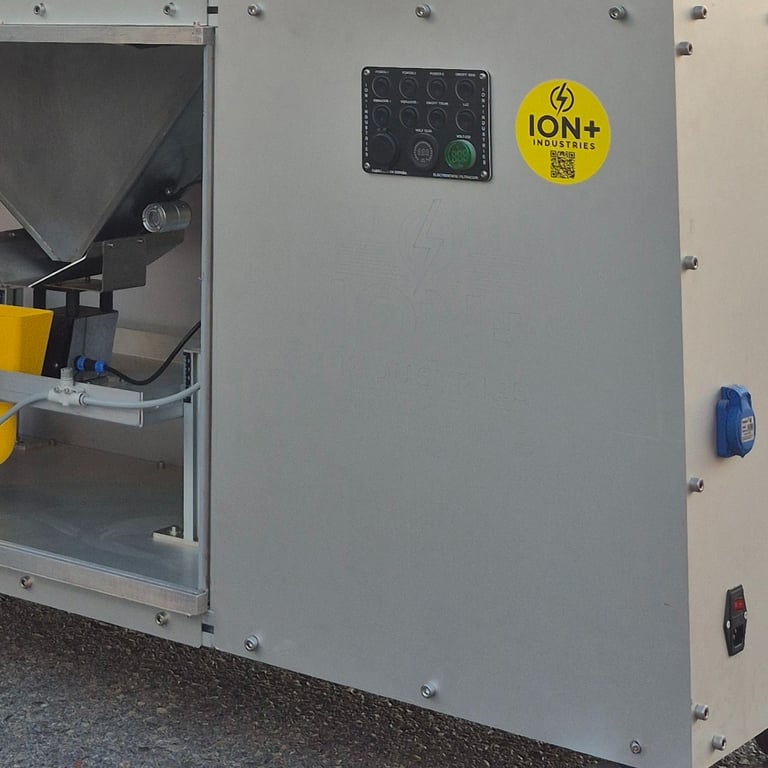

Power Supply and Monitoring: Operates on a 220V AC line. Integrated digital voltmeter monitors electrical input in real time (range: 5V to 500V). Includes a red LED warning system for detecting voltage fluctuations, protecting the compressor and sensitive components from electrical stress.

Safety Compliance: CE-certified. Equipped with integrated fail-safes to prevent accidental discharge or sparking when the plates are inactive, and automatic shutdown mechanisms in the event of system faults.

Optional Components: Custom-fit stainless steel collection trays (optional). Integrated antistatic bars remove residual static charges from the working environment, improving particle separation accuracy and minimizing contamination.

Production and Capacity

Processing capacity: Approximate capacity of 1 kg/hour of dry biomass under optimal conditions.

Collection Efficiency: Capable of collecting 250 grams every 15 minutes, depending on product characteristics.

Purity Levels: Achieves output purity between 98–99%, minimizing the need for secondary processing.

Temperature Range: Designed to operate efficiently between -6°C and 17°C, maintaining consistent separation performance.

Relative Humidity: Recommended range is 35%–45%. This optimizes trichome detachment and prevents clumping, ensuring high efficiency even in cold-room environments (6–7°C).

Ease of Operation: User-friendly interface. No prior technical expertise is required forstandard operation or maintenance.

Warranty and Service

Warranty Coverage: 10-year warranty on vibration units. 5-year warranty on all electrical and electronic components.

After-Sales Service: Continuous technical support. Spare parts and system upgrades available at production cost to ensure maximum uptime and long-term performance.

Installation and Logistics

Modular Installation: Delivered in two detachable modules with plug-and-play connections. Designed for quick deployment and minimal setup time.

Logistics and Deployment: Installation and transport services available in Spain, the European Union, and Morocco. Operation does not require specialized technicians.
