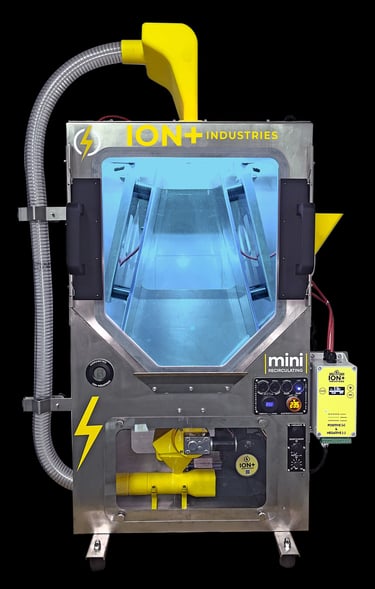

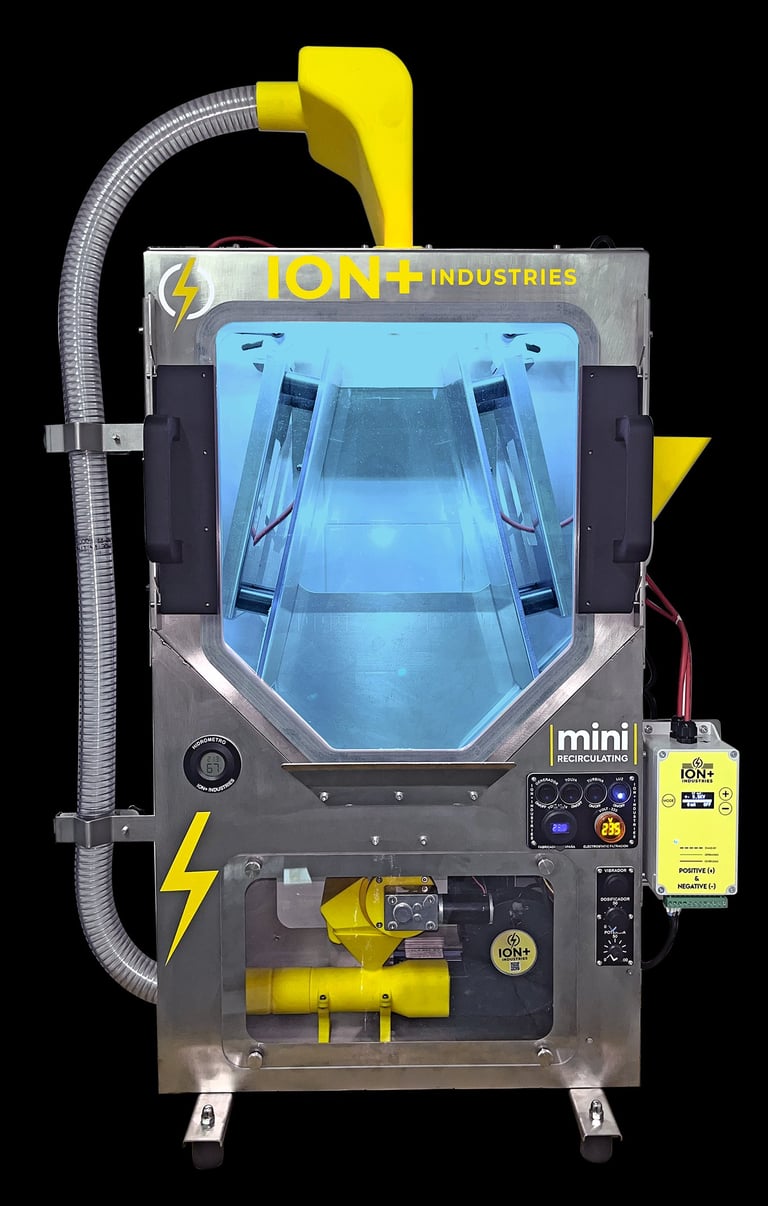

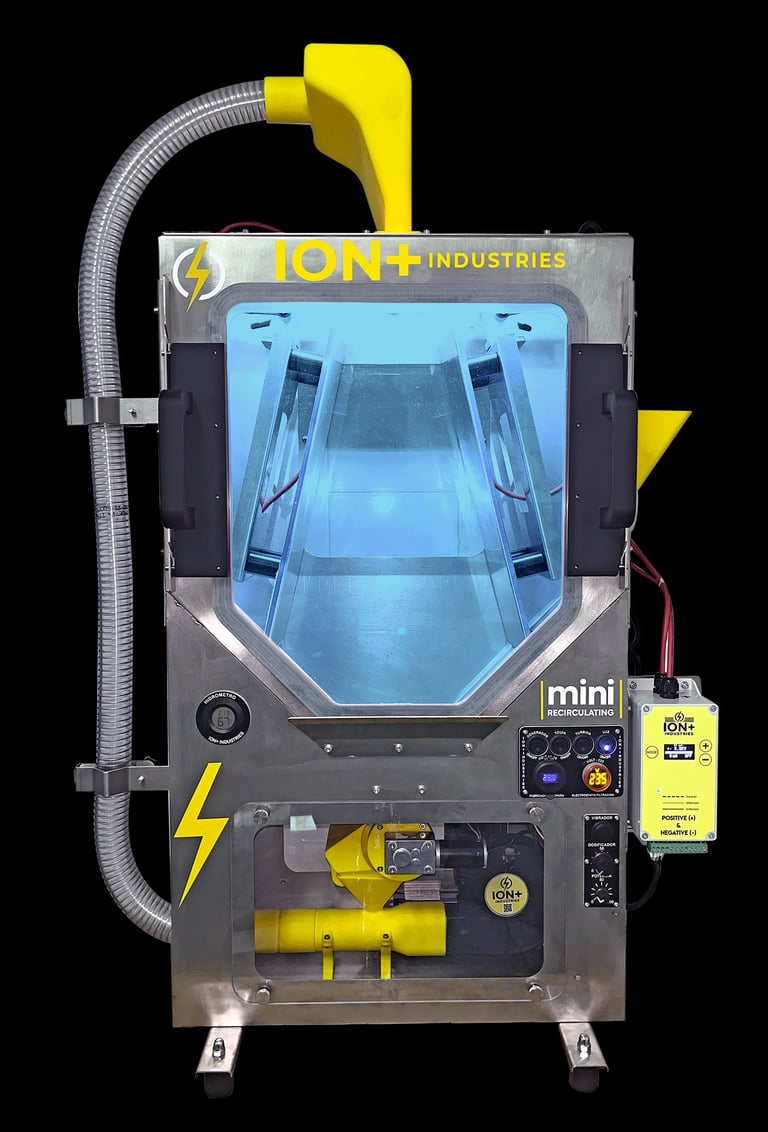

COMPACT MODEL

The New Generation in Electrostatic Filtration

Compact, efficient, and designed for small-scale domestic or professional use, this new machine brings our recirculation technology into a reduced format—without sacrificing power or precision.

Vibration System: Equipped with 3DMita dosing units and non-pneumatic hopper vibrators. Features programmable vibration parameters with a maximum noise level of 80 dB, ensuring low-noise operation in enclosed workspaces.

Safety Compliance: CE-certified. Equipped with integrated fail-safes to prevent accidental discharge or sparking when the plates are inactive, and automatic shutdown mechanisms in the event of system faults.

Optional Components: Custom-fit stainless steel collection trays (optional). Integrated antistatic bars remove residual static charges from the working environment, improving particle separation accuracy and minimizing contamination.

Production and Capacity

Processing capacity: Approximate capacity of 250g/hour of dry biomass under optimal conditions.

Purity Levels: Achieves output purity between 98–99%, minimizing the need for secondary processing.

Temperature Range: Designed to operate efficiently between -6°C and 17°C, maintaining consistent separation performance.

Relative Humidity: Recommended range is 35%–45%. This optimizes trichome detachment and prevents clumping, ensuring high efficiency even in cold-room environments (6–7°C).

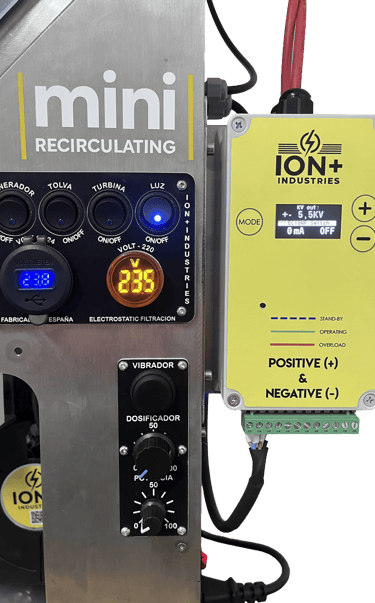

Ease of Operation: User-friendly interface. No prior technical expertise is required forstandard operation or maintenance.

Warranty and Service

Warranty Coverage: 2-year warranty on vibration units. 2-year warranty on all electrical and electronic components.

After-Sales Service: Continuous technical support. Spare parts and system upgrades available at production cost to ensure maximum uptime and long-term performance.

Installation and Logistics

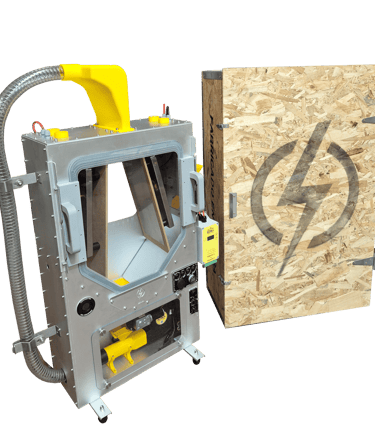

Modular Installation: Delivered in two detachable modules with plug-and-play connections. Designed for quick deployment and minimal setup time.

Logistics and Deployment: Installation and transport services available in Spain, the European Union, and Morocco. Operation does not require specialized technicians.
